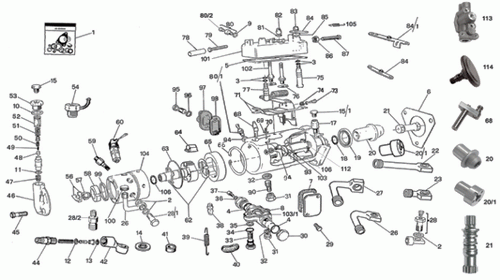

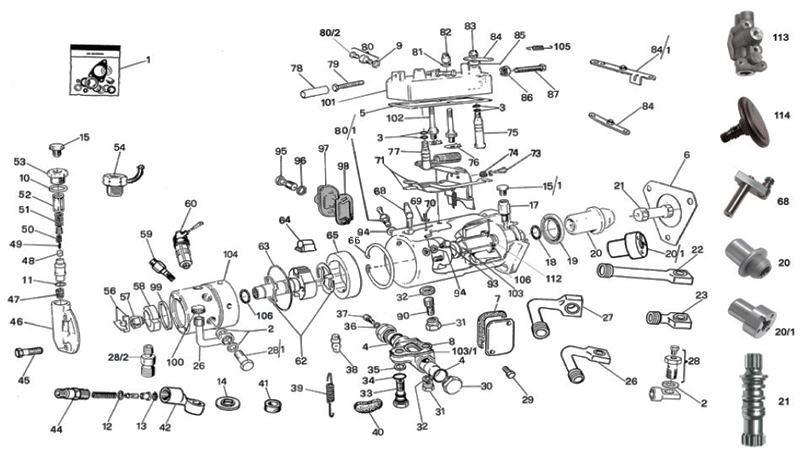

| Delphi-Lucas DP200 DPA DPC DPCN DPS DPA - Decomposition map |
| Pics |
Descriptions |
Orig.Reference |
| 1 |
Kit Gasket DPA |
7135-70 |
| 1 |
Kit Gasket DPA |
9956293=7135-110 |
| 1 |
kit Gasket SOFIM |
79071400=7135-113 |
| 1 |
Hydraulic Kit Gasket 80.0414 |
7135-114 |
| 1 |
Kit Gasket Dps Fiat Trax |
7135-122 |
| 1 |
Kit Gasket Dps Ford |
7135-123 |
| 1 |
Kit Gasket Dpc P 109-230 |
9109-013A=9109-210 |
| 1 |
Kit Gasket Stanadyne 80.0998 |
24.370 |
| 1 |
Kit Gasket Stanadyne 80.0999 |
24.371 |
| 1 |
Kit Gasket Stanadyne 80.0996 |
24.372 |
| 1 |
Kit Gasket Stanadyne 80.0997 |
24.373 |
| 1 |
Kit Gasket Special |
7135-70S=T135-110S |
| 2 |
Washer Steel DPA mm. 2 82.0184 |
9920107=5936-332C |
| 3 |
Dpa o-Ring Shaft 81.0134 |
9917950=5855-30 |
| 4 |
Seal Ring Dpa 81.0161 |
9917975=5855-30.BD |
| 5 |
Gasket Cover dpa |
9917923=7123-287=7180-451 |
| 5 |
Gasket Cover dps |
7174-274A |
| 6 |
Gasket Flange Ø 50 |
4607627=7167-496S |
| 6 |
Gasket Flange Perkins |
9007-500 |
| 7 |
Cork Gasket 81.0146 |
9917925=7123-515A |
| 8 |
Gasket Advance 83.0106 |
9917967=7123-937 |
| 9 |
Copper Washer 12x6,8x1 |
9917965=NW5-15 |
| 10 |
Washer 19x23x1,5 84.0028 |
9917895=NW5-77W4 |
| 11 |
Piston Washer dpa |
9917889=5936/177 |
| 12 |
Washer (for valve) 82.0222 |
9933308=9007-391 |
| 13 |
Valve Washer |
9007-390 |
| 14 |
Oil Seal (dpa hydr.) 81.0153 |
7022-180C |
| 14 |
Dpa Seal Housing |
5950/34C |
| 15 |
Protection Plug (Red) 83.0109 |
7167-61 |
| 15/1 |
Protection Plug(Yellow) 83.0113 |
7167-60 |
| 17 |
Connection Valve SOFIM |
9988815=7167-955 |
| 17 |
Drain Connection OM40/50 NC |
9917928=7139-854=7167-379C=9007-988C |
| 17 |
Connection |
7133-31C |
| |
| Pics |
Descriptions |
Orig.Reference |
| 17 |
connection |
7167-379C=9007-988C |
| 18 |
o-ring(drive shaft) |
9935485=5855-30B-B |
| 18 |
o-ring |
5855-30AG |
| 19 |
oil seal 28,58x38,1x6,35 81.0151 |
5393-252U |
| 19 |
oil seal 22,2x34,9x6,35 81.0243 |
9919920=5393-252R |
| 19 |
oil seal 20x35x6 dps |
7174-127A |
| 19 |
oil seal dpc( threaded) |
9107-406 |
| 19 |
oil seal advance dps ford |
7177-38A |
| 19 |
oil seal advance dps ford transit |
7174-856 |
| 20 |
drive hub (normal type) |
7123-269 |
| 20 |
drive hub with coupling |
7139-41 |
| 20/1 |
drive hub (big) normal type |
7123-549 |
| 20/1 |
drive hub(big) with coupling |
7123-980 |
| 21 |
drive hub |
7139-52B |
| 21 |
drive hub |
7139-185/01 |
| 21 |
toothed joint |
7123-592B=7123-592 |
| 21 |
toothed joint |
7123-592A |
| 22 |
connection Ø 8 (long type) |
9917904=7123-503 |
| 22 |
connection Ø 10,5 (long type) |
7123-503A |
| 22 |
connection (bended) Ø 8 |
201138 |
| 22 |
connection(long type) |
7139-354 |
| 22 |
connection(long type) Ø 10,5x71 fiat |
7139-354B |
| 23 |
connection(short type) |
7139-499 |
| 26 |
connection (angle type) |
7123-670 |
| 26 |
connection (long type) |
7123-670A |
| 28 |
connection(frontal type) |
7139-480 |
| 28 |
connection with drain SOFIM |
9986300=7139-560A |
| 28 |
screw |
7123-339A |
| 28 |
connection |
9986293=7123-339 |
| 28 |
connection |
7123-339D=7139-177A |
| 28 |
connection |
7123-501 |
| 29 |
screw |
9917926=5334-274 |
| 30 |
plug |
9927705=7123-473J |
| |
| Pics |
Descriptions |
Orig.Reference |
| 30 |
plug |
7123-473B |
| 31 |
plug |
9917969=5330-362 |
| 32 |
bonded seal Ø 14 iron/rubber |
9922900=7022-180D |
| 32 |
bonded seal Ø 22 iron/rubber |
7022-180L |
| 33 |
stud OM40 |
9927709=7123-855A |
| 33/1 |
manual lock trax fiat |
9919569=7139-2C |
| 33/2 |
stud perkins ford |
7123-261/S |
| 34 |
spacer |
9922915=7139-821=5855-30FR |
| 35 |
spacer |
9917981=5936-91 |
| 36 |
copper washer 8,7x5x0,8 |
9956518=5936-355C |
| 37 |
advance screw |
9956517=5334-291 |
| 38 |
cam screw dpa |
9917971=7123-975 |
| 38 |
spark advance olive |
7123-947 |
| 39 |
advance spring SOFIM |
9929579 |
| 40 |
rubber cap dpa |
7123-691 |
| 41 |
o-ring 8x4x6 small |
|
| 41 |
o-ring10,5x6,5x6 medium |
7167-746 |
| 41 |
o-ring 10,5x7,5x6 big |
7167-746A |
| 42 |
connection SOFIM |
9007-687C |
| 44 |
connection valve SOFIM |
9986328=9007-688C |
| 45 |
plate screw |
9920951=5334-315 |
| 46 |
end plate |
7135-181 |
| 46 |
end plate |
7135-180 |
| 46 |
end plate fiat 40 NC ( long) |
9927711=7139-344B=7135-233 |
| 47 |
spring |
9917886=7123-439 |
| 48 |
dpa piston |
9917887=7123-15G |
| 49 |
spring |
9956301=7123-33E |
| 50 |
spring |
9956297=7123-33F |
| 51 |
spring |
9917893=7123-551 |
| 52 |
filter dpa |
9917890=7123-620 |
| 53 |
connection dpa |
9917894=7133-37 |
| 53 |
inlet union |
7123-554 |
| 54 |
solenoid modification (stop) |
|
| |
| Pics |
Descriptions |
Orig.Reference |
| 56 |
blades set dpa |
9917897=7123-388 |
| 57 |
right-hand rotor |
9917896=7123-018F=D |
| 57 |
left-hand rotor |
9917987=7123-18A |
| 58 |
liner |
7139-115 |
| 58 |
liner 81. 0323 |
9917898=7139-223 |
| 58 |
liner SOFIM |
9929583=7139-540 |
| 58 |
liner |
7139-541 |
| 58 |
liner 16.753 roosa master |
|
| 58 |
dpc liner |
9103-009AN |
| 59 |
dpa banjo bolt |
7180-358 EX 39-752 |
| 59/1 |
dps union |
7174-842E |
| 60 |
solenoid 12V |
9986316=7167-620A |
| 60 |
dpc solenoid |
9009-049 |
| 60 |
dps solenoid 24V |
7180-49A |
| 60 |
solenoid dps 12V |
9959327=7167-620D |
| 60 |
solenoid dps 24V |
7180-49D |
| 62 |
plate adj. top |
9956300=7135-73 |
| 62 |
plate adj. top |
7135-73A |
| 62 |
plate adj. top |
7135-73B |
| 63 |
o-ring dpa head |
9917903=5855-30BC |
| 63 |
o-ring dpc/dpa |
9107-403A |
| 64 |
set roller (2 pieces) |
9986280=7135-72 |
| 65 |
camme ring 7139-234C |
7123-308C |
| 65 |
camme ring |
7123-308E |
| 65 |
camme ring fiat 2 cyl |
7123-308F(former 7139-713F) |
| 65 |
camme ring fiat 4 cyl |
9917992=7123-308N |
| 65 |
camme ring |
7123/308S |
| 65 |
camme ring |
7123-309A |
| 65 |
camme ring |
7123-309C |
| 65 |
camme ring |
7123-309AA |
| 65 |
camme ring |
7123-309D |
| 65 |
camme ring |
7123-309E |
| 65 |
camme ring fiat 6 cyl/brasil |
7123-309H |
| |
| Pics |
Descriptions |
Orig.Reference |
| 65 |
camme ring |
7123-309M |
| 65 |
camme ring |
7123-309N |
| 65 |
camme ring |
7123-309R |
| 65 |
camme ring |
7123-309Q |
| 65 |
camme ring |
9917915=7139-100P |
| 65 |
camme ring |
9918200=7139-687M |
| 65 |
camme ring |
7139-713D |
| 65 |
camme ring |
7139-763E=7123-309Q |
| 65 |
camme ring |
9920106=7139-860P |
| 65 |
camme ring=7139-844M |
9927713=7139-844E |
| 65 |
camme ring |
9988673=7139-844M |
| 65 |
camme ring 3+6 Cyl. |
7139-940D |
| 65 |
camme ring |
7139-940M |
| 65 |
camme ring |
7139-940Q |
| 65 |
camme ring |
7139-940E |
| 65 |
camme ring FIAT 4 Cyl. 780 |
7139-949Q |
| 65 |
camme ring |
7139-949M |
| 65 |
camme ring 3+6 Cyl. |
9922901=7139-974D=756D |
| 65 |
camme ring 3+6 Cyl. |
7167-287 |
| 65 |
camme ring 3+6 Cyl. |
7167-287A |
| 65 |
camme ring |
9936129=7167-594C |
| 65 |
camme ring |
9961152=7174-67 |
| 65 |
camme ring |
9961807=7174-67W |
| 66 |
seeger |
997916=5950-64A |
| 68 |
dpa metering valve |
7123-490 |
| 68 |
metering valve |
7123-490B |
| 68 |
metering valve |
7123-781=7123-781F |
| 68 |
metering valve |
7123-781A |
| 68 |
metering valve |
7123-781B |
| 68 |
metering valve |
7123-781C |
| 68 |
metering valve |
7123-781D |
| 68 |
metering valve |
7123-835B=7123-835F |
| 68 |
metering valve |
7123-835C |
| 68 |
metering valve |
7123-930 |
| |
| Pics |
Descriptions |
Orig.Reference |
| 68 |
metering valve |
7123-930B |
| 68 |
metering valve |
7139-269 |
| 68 |
metering valve |
7139-269A |
| 68 |
metering valve |
9918203=7139-559 |
| 68 |
metering valve |
9918206=7139-559A |
| 68 |
metering valve |
9917946=7139-559D |
| 68 |
metering valve |
9917947=7139-559E |
| 68 |
metering valve |
7139-559B |
| 68 |
metering valve |
7139-559C |
| 68 |
metering valve |
7123-490C |
| 68 |
metering valve |
7123-490D |
| 68 |
metering valve |
7123-490E |
| 68 |
metering valve |
7123-490F |
| 68 |
metering valve sofim |
9986333=7167-57AJP |
| 68 |
metering valve |
9003-027C |
| 68 |
metering valve dpc |
9100-125C |
| 68 |
metering valve dpc |
9100-228 |
| 68 |
metering valve sofim |
9986332=7167-57AJN |
| 68 |
metering valve (threaded) dps |
7174-980A |
| 68 |
metering valve trax dps |
9961153=7182-620A |
| 68 |
metering valve dps |
7182-621J |
| 68 |
metering valve dps |
7182-620C |
| 68 |
metering valve dps |
7182-620G |
| 68 |
metering valve dps |
7182-621A |
| 68 |
metering valve dps |
7182-621C |
| 68 |
metering valve |
7182-621G=9971559 |
| 68 |
metering valve |
11563 |
| 68 |
metering valve sofim |
9986331=7167-57AJM |
| 69 |
washer locking |
9922905=7167-331 |
| 70 |
screw |
9917934=5334-277 |
| 71 |
dpa plate (pair) 3pcs |
9988591=7135-73A |
| 71 |
dpa plate pair |
9917913=7135-76AC=7135-76 |
| 73 |
spring guide |
9917958=7123-93 |
| |
| Pics |
Descriptions |
Orig.Reference |
| 74 |
spring |
9917957=7123-92A |
| 75 |
stop shaft |
9917949=7123-726 |
| 76 |
washer locking 82.0179 |
9917932=7123-600 |
| 77 |
accelerator shaft |
7123-770D |
| 77 |
accelerator shaft (short) |
9917954=7123-770 |
| 77 |
accelerator shaft (long) |
7123-770A |
| 77 |
accelerator shaft dps |
7123-828E |
| 77 |
accelerator shaft dpc |
7139-791A |
| 78 |
alu sleeve dpa |
4617425=7139-184 |
| 78 |
seal Ø 8 |
7174-929B |
| 78 |
seal |
7139-795 |
| 78/1 |
seal cap (short) |
9986265=7139-60A |
| 79 |
register screw |
9917960=5334-267A |
| 80 |
screw vent ass.(small) |
9917964=7123-351B |
| 80/1 |
screw vent ass. |
9917908=7123-352B |
| 80/2 |
screw vent ass. |
5334/332 |
| 81 |
fibre washer 9,5x5x2 |
9917938=5339-970 |
| 82 |
nut cap |
9917937=5330-344=7123-108 |
| 83 |
self locking nut dpa |
9917953=5330-406=NU9-8Y1 |
| 84 |
lever stop dpa Ø 6,5 |
9917951=7123-725A |
| 84 |
lever stop dpa Ø 5 |
9927706=7123-725B |
| 84/1 |
accelerator lever |
9917955=7123-724D |
| 84/1 |
accelerator lever |
7123-724 |
| 85 |
dust cap dpa |
9917952=7123-728A |
| 90 |
stud |
5335-694A |
| 90 |
stud |
9923014=5335-694 |
| 93 |
cap |
5334-280 |
| 94 |
copper washer |
NW5-18W4 |
| 95 |
drilled bolt Ø 13 |
|
| 96 |
copper washer Ø13x1,5 |
5339-966 |
| 96 |
copper washerØ13x2,00 |
NW5-34 W4 |
| 97 |
cover plate |
7180-57A=9045-296 |
| 98 |
jointing dpa |
9045-137 |
| |
| Pics |
Descriptions |
Orig.Reference |
| 98 |
jointing sofim dpa |
7139-740 |
| 99 |
seal transfer pump |
9917899=7139-43 |
| 100 |
dust cap |
7139-979 |
| 101 |
cover fiat |
9917959=7123-888 |
| 101 |
cover |
7123-888A |
| 101 |
cover fiat |
9929958=7123-888D |
| 101 |
cover |
7123-785A |
| 101 |
cover sofim |
9988814=7123-785N |
| 102 |
dpa stud |
9917931=7123-527 |
| 103 |
coupling |
9926919=7167-89A |
| 103/1 |
advance body dpa |
7139-16 |
| 103/1 |
advance body dpa |
7139-16A |
| 104 |
H. HEAD & ROTOR PERKINS=VM |
7123-340G |
| 104 |
H. HEAD & ROTOR PERKINS |
7123-340 |
| 104 |
H. HEAD & ROTOR PERKINS |
7123-340K |
| 104 |
H. HEAD & ROTOR DAVID BROWN |
7123-340L |
| 104 |
H. HEAD & ROTOR PERKINS |
7123-340R |
| 104 |
H. HEAD & ROTOR PERKINS=SAME |
7123-340S |
| 104 |
H. HEAD & ROTOR PERKINS=SAME |
7123-340U=9003-203V |
| 104 |
H. HEAD & ROTOR PERKINS=SAME |
7123-340W |
| 104 |
H. HEAD & ROTOR |
7123-340M |
| 104 |
H. HEAD & ROTOR |
7123-345N |
| 104 |
H. HEAD & ROTOR |
7123-340Q |
| 104 |
H. HEAD & ROTOR PERKINS |
7123-345M |
| 104 |
H. HEAD & ROTOR |
7123-345S |
| 104 |
H. HEAD & ROTOR PERKINS |
7123-345T |
| 104 |
H. HEAD & ROTOR SAME 6 Cyl. |
7123-345W |
| 104 |
H. HEAD & ROTOR JOHN DEERE |
7123-345U |
| 104 |
H. HEAD & ROTOR MASSEY FERGUSON Turbo |
7123-345X |
| 104 |
H. HEAD & ROTOR |
7123-359J |
| 104 |
H. HEAD & ROTOR PERKINS |
7123-909T |
| 104 |
H. HEAD & ROTOR |
7123-909U |
| 104 |
H. HEAD & ROTOR PERKINS |
7123-909V |
| |
| Pics |
Descriptions |
Orig.Reference |
| 104 |
H. HEAD & ROTOR FIAT 4 Cyl. |
7139-130R |
| 104 |
H. HEAD & ROTOR FIAT 4 Cyl. |
7139-130T |
| 104 |
H. HEAD & ROTOR PERKINS |
7139-235S |
| 104 |
H. HEAD & ROTOR PERKINS 6 Cyl. |
7139-360U |
| 104 |
H. HEAD & ROTOR FORD 5000/6000 HOLE UP |
7139-422W |
| 104 |
H. HEAD & ROTOR FORD 3000/4500 |
7139-709W |
| 104 |
H. HEAD & ROTOR FIAT |
7139-764T |
| 104 |
H. HEAD & ROTOR PERKINS |
7139-764S |
| 104 |
H. HEAD & ROTOR FIAT=OM 40,50NC |
7167-334U |
| 104 |
H. HEAD & ROTOR FIAT 300 2 Cyl. |
7167-349S |
| 104 |
H. HEAD & ROTOR PERKINS |
7167-539K |
| 104 |
H. HEAD & ROTOR ROTO DIESEL |
9002-232L=9002-2 |
| 104 |
H. HEAD & ROTOR FIAT 4 Cyl.with solenoid |
7167-804R |
| 104 |
H. HEAD & ROTOR FIAT 3 Cyl.with solenoid |
7167-807T |
| 104 |
H. HEAD & ROTOR DPS FIAT 6 Cyl. |
7183-182L |
| 104 |
H. HEAD & ROTOR |
7180-553J |
| 104 |
H. HEAD & ROTOR |
7180-795S EX 559S |
| 104 |
H. HEAD & ROTOR |
7180-574T |
| 104 |
H. HEAD & ROTOR |
7180-19R EX 668R |
| 104 |
H. HEAD & ROTOR |
7180-19U EX 668U |
| 104 |
H. HEAD & ROTOR |
7180-19W EX 668W |
| 104 |
H. HEAD & ROTOR |
7180-19S EX 668S |
| 104 |
H. HEAD & ROTOR |
7180-19G EX 668G |
| 104 |
H. HEAD & ROTOR |
7180-586F |
| 104 |
H. HEAD & ROTOR |
7180-650S |
| 104 |
H. HEAD & ROTOR |
7180-578M EX 7123-359M |
| 104 |
H. HEAD & ROTOR 4 Cyl.with solenoid |
7180-681R |
| 104 |
H. HEAD & ROTOR FIAT 1000 with solenoid |
6 Cyl.DPA |
| 105 |
stop SPRING mm.8 |
|
| 105 |
accelerator RETURN spring mm.13 |
|
| 106 |
washer rotor plug |
5339-808/5339-964 |
| 112 |
drive shaft mm.28 |
7180-136A EX 7139-644D |
| 112 |
drive shaft mm.28,5 |
7180-136B EX 7139-644E |
| |
| Pics |
Descriptions |
Orig.Reference |
| 113 |
cont/cover assy |
7180-873A EX 7135-78D |
| 114 |
damper |
7139-159A |
| 114 |
damper perkins |
7139-159B |
| 115 |
washer rotor plug |
5339-808/5339-964 |
| 116 |
rubber advance |
5950-54C |
|
eBay Stores
