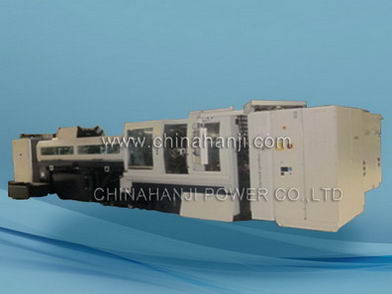

Equipment Name : Eight-axis CNC automatic lathes
Processing range : For all kinds of shaft parts, slender shaft parts processing, material are main to stainless steel, titanium and other non-ferrous metals,device can do a complete turning, milling, drilling, tapping and threading,have the capable of completed done back processing, lateral processing etc.Minimum clamping diameter:4 mm Maximum: 55 mm.
Processing accuracy : Dimensional Accuracy: 0.02MM |
|
|
|
|
|
Processing advantages : New MultiSigma provides the latest generation of motorized spindle,is the most powerful equipment of similar products,just a single clamping,can be completed
Miscellaneous parts production. Eight powerful and independent spindle with great flexibility,at the same time there is an integrated machine hand unloading parts on a tray.According to the requirements of the workpiece on the back of the required processing, this machine can be equipped with multiple machining tools which has two back side processing,with high production efficiency.
|
|
|
|
|

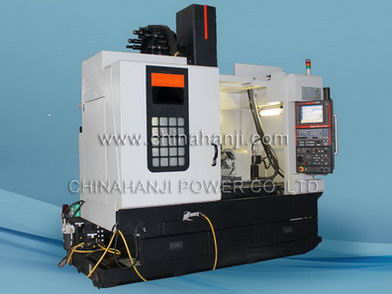

Equipment Name : Vertical Machining Center
Processing range : Five Axis Machining Maximum Range:
X:900MM
Y:410MM
Z:570MM
A:360 Degree
B:150 Degree
Processing accuracy : Dimensional Accuracy: 0.02MM,Geometric Tolerance 0.01MM |
|
|
|
|
|
Processing advantages :Five-axis machining platform, four axis linkage, load rotational axis, by installing its own rotary worktable, can drill the hole in any angle , multi-surface milling machining, and 5 axis linkage of pillar type mobile vertical machining center.
|
|
|
|
|

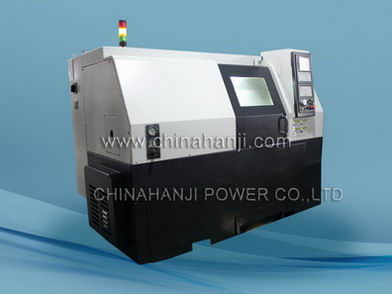

Equipment Name : CNC Digital Control Car
Processing range : Hardware Fittings Car Kind Machining. XX/Z Axis' Maximum Stroke: 400/200MM
Processing accuracy : Dimensional Accuracy: 0.02MM,Geometric Tolerance: 0.02MM |
|
|
|
|
|
Processing advantages : This series of machine is suitable for processing all kinds of hardware fitting parts, such as electronics, electrical, automotive, pneumatic, gardening, plumbing, etc. of turning components.High efficiency, high capacity, high precision,is the best ideal processing technology for the processing industry to create high profit and low cost .
|
|
|
|
|

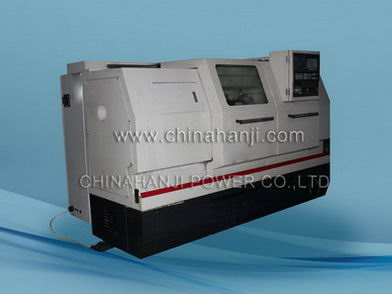

Equipment Name : CNC lathe
Processing range : Maximum turning diameter:360mm;Maximum turning length:2620mm
Processing accuracy : Machining parts' accuracy is IT6;Roughness is Ra1.6 |
|
|
|
|
|
Processing advantages : This series of numerical control machine tools is suitable for automatically processing solid of revolution's cylindrical surface, arc surface, conical surface, end face, grooving and all kinds of inch thread & metric thread with batch, efficient and high-precision.
|
|
|
|
|

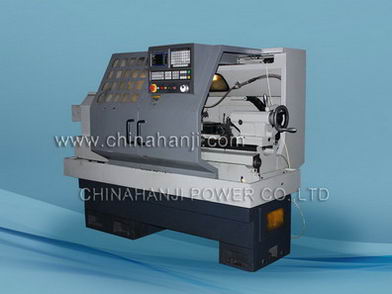

Equipment Name : CNC lathe
Processing range : Maximum turning diameter:360mm ;Maximum turning length:2620mm
Processing accuracy : Machining parts' accuracy is IT6 ;
Roughness is Ra0.8 |
|
|
|
|
|
Processing advantages : This series of numerical control machine tools is especially suitable for automatically processing solid of revolution's cylindrical surface, arc surface, conical surface, end face, grooving and all kinds of inch thread & metric thread with batch, efficient and high-precision.
|
|
|
|
|

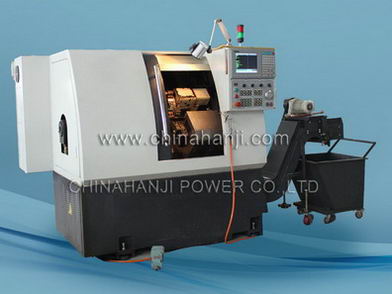

Equipment Name : CNC Lathe
Processing range : Maximum turning diameter:360mm ;Maximum turning length:2620mm
Processing accuracy : Dimensional accuracy:0.02MM
Geometric Tolerance:0.02MM |
|
|
|
|
|
Processing advantages : The series NC lathes are specially suitable for rotary parts turning,arc surface turning,taper turning,end facing,groove broaching,and threading Inch,Metric,etc.Batch production can be processed automatically with high efficiency and high accuracy.
|
|
|
|
|

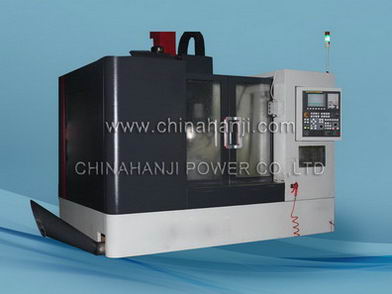

Equipment Name : Vertical Machining Center
Processing range : Drilling, milling, end-face milling, tapping, boring hole
Processing accuracy : Dimentional accuracy 0.02-0.03
Concentricness 0.025
cylindricity
roundness 0.02
Perpendicularity 0.015
Parallelism 0.02 |
|
|
|
|
|
Processing advantages : Vertical processing center is mainly used for processing parts like plate,complex disc ,shell parts,mould and others with high accuracy,much process,complicated shapes,in one clamping,it can continously finish accurate processing of milling,drilling,extending,reamming,boring,tapping,and processing in surface of Two-dimensional three-dimensional curved and sloping ,bring process programming,shorten production period,accordingly make users obtain favorable economic benefit.
|
|
|
|
