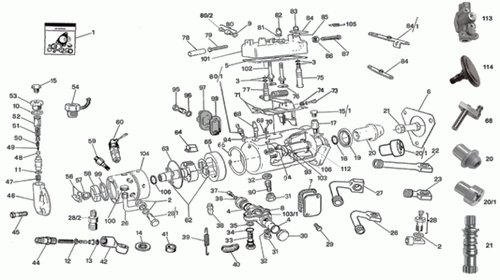

HOME >> Lucas >> DPA - Decomposition map




 Delphi-Lucas  DP200  DPA  DPC  DPCN  DPS  DPA - Decomposition map
Pics Descriptions Orig.Reference
1 Kit Gasket DPA 7135-70
1 Kit Gasket DPA 9956293=7135-110
1 kit Gasket SOFIM 79071400=7135-113
1 Hydraulic Kit Gasket 80.0414 7135-114
1 Kit Gasket Dps Fiat Trax 7135-122
1 Kit Gasket Dps Ford 7135-123
1 Kit Gasket Dpc P 109-230 9109-013A=9109-210
1 Kit Gasket Stanadyne 80.0998 24.370
1 Kit Gasket Stanadyne 80.0999 24.371
1 Kit Gasket Stanadyne 80.0996 24.372
1 Kit Gasket Stanadyne 80.0997 24.373
1 Kit Gasket Special 7135-70S=T135-110S
2 Washer Steel DPA mm. 2 82.0184 9920107=5936-332C
3 Dpa o-Ring Shaft 81.0134 9917950=5855-30
4 Seal Ring Dpa 81.0161 9917975=5855-30.BD
5 Gasket Cover dpa 9917923=7123-287=7180-451
5 Gasket Cover dps 7174-274A
6 Gasket Flange Ø 50 4607627=7167-496S
6 Gasket Flange Perkins 9007-500
7 Cork Gasket 81.0146 9917925=7123-515A
8 Gasket Advance 83.0106 9917967=7123-937
9 Copper Washer 12x6,8x1 9917965=NW5-15
10 Washer 19x23x1,5 84.0028 9917895=NW5-77W4
11 Piston Washer dpa 9917889=5936/177
12 Washer (for valve) 82.0222 9933308=9007-391
13 Valve Washer 9007-390
14 Oil Seal (dpa hydr.) 81.0153 7022-180C
14 Dpa Seal Housing 5950/34C
15 Protection Plug (Red) 83.0109 7167-61
15/1 Protection Plug(Yellow) 83.0113 7167-60
17 Connection Valve SOFIM 9988815=7167-955
17 Drain Connection OM40/50 NC 9917928=7139-854=7167-379C=9007-988C
17 Connection 7133-31C

Pics Descriptions Orig.Reference
17 connection 7167-379C=9007-988C
18 o-ring(drive shaft) 9935485=5855-30B-B
18 o-ring 5855-30AG
19 oil seal 28,58x38,1x6,35 81.0151 5393-252U
19 oil seal 22,2x34,9x6,35 81.0243 9919920=5393-252R
19 oil seal 20x35x6 dps 7174-127A
19 oil seal dpc( threaded) 9107-406
19 oil seal advance dps ford 7177-38A
19 oil seal advance dps ford transit 7174-856
20 drive hub (normal type) 7123-269
20 drive hub with coupling 7139-41
20/1 drive hub (big) normal type 7123-549
20/1 drive hub(big) with coupling 7123-980
21 drive hub 7139-52B
21 drive hub 7139-185/01
21 toothed joint 7123-592B=7123-592
21 toothed joint 7123-592A
22 connection Ø 8 (long type) 9917904=7123-503
22 connection Ø 10,5 (long type) 7123-503A
22 connection (bended) Ø 8 201138
22 connection(long type) 7139-354
22 connection(long type) Ø 10,5x71 fiat 7139-354B
23 connection(short type) 7139-499
26 connection (angle type) 7123-670
26 connection (long type) 7123-670A
28 connection(frontal type) 7139-480
28 connection with drain SOFIM 9986300=7139-560A
28 screw 7123-339A
28 connection 9986293=7123-339
28 connection 7123-339D=7139-177A
28 connection 7123-501
29 screw 9917926=5334-274
30 plug 9927705=7123-473J

Pics Descriptions Orig.Reference
30 plug 7123-473B
31 plug 9917969=5330-362
32 bonded seal Ø 14 iron/rubber 9922900=7022-180D
32 bonded seal Ø 22 iron/rubber 7022-180L
33 stud OM40 9927709=7123-855A
33/1 manual lock trax fiat 9919569=7139-2C
33/2 stud perkins ford 7123-261/S
34 spacer 9922915=7139-821=5855-30FR
35 spacer 9917981=5936-91
36 copper washer 8,7x5x0,8 9956518=5936-355C
37 advance screw 9956517=5334-291
38 cam screw dpa 9917971=7123-975
38 spark advance olive 7123-947
39 advance spring SOFIM 9929579
40 rubber cap dpa 7123-691
41 o-ring 8x4x6 small
41 o-ring10,5x6,5x6 medium 7167-746
41 o-ring 10,5x7,5x6 big 7167-746A
42 connection SOFIM 9007-687C
44 connection valve SOFIM 9986328=9007-688C
45 plate screw 9920951=5334-315
46 end plate 7135-181
46 end plate 7135-180
46 end plate fiat 40 NC ( long) 9927711=7139-344B=7135-233
47 spring 9917886=7123-439
48 dpa piston 9917887=7123-15G
49 spring 9956301=7123-33E
50 spring 9956297=7123-33F
51 spring 9917893=7123-551
52 filter dpa 9917890=7123-620
53 connection dpa 9917894=7133-37
53 inlet union 7123-554
54 solenoid modification (stop)

Pics Descriptions Orig.Reference
56 blades set dpa 9917897=7123-388
57 right-hand rotor 9917896=7123-018F=D
57 left-hand rotor 9917987=7123-18A
58 liner 7139-115
58 liner 81. 0323 9917898=7139-223
58 liner SOFIM 9929583=7139-540
58 liner 7139-541
58 liner 16.753 roosa master
58 dpc liner 9103-009AN
59 dpa banjo bolt 7180-358 EX 39-752
59/1 dps union 7174-842E
60 solenoid 12V 9986316=7167-620A
60 dpc solenoid 9009-049
60 dps solenoid 24V 7180-49A
60 solenoid dps 12V 9959327=7167-620D
60 solenoid dps 24V 7180-49D
62 plate adj. top 9956300=7135-73
62 plate adj. top 7135-73A
62 plate adj. top 7135-73B
63 o-ring dpa head 9917903=5855-30BC
63 o-ring dpc/dpa 9107-403A
64 set roller (2 pieces) 9986280=7135-72
65 camme ring 7139-234C 7123-308C
65 camme ring 7123-308E
65 camme ring fiat 2 cyl 7123-308F(former 7139-713F)
65 camme ring fiat 4 cyl 9917992=7123-308N
65 camme ring 7123/308S
65 camme ring 7123-309A
65 camme ring 7123-309C
65 camme ring 7123-309AA
65 camme ring 7123-309D
65 camme ring 7123-309E
65 camme ring fiat 6 cyl/brasil 7123-309H

Pics Descriptions Orig.Reference
65 camme ring 7123-309M
65 camme ring 7123-309N
65 camme ring 7123-309R
65 camme ring 7123-309Q
65 camme ring 9917915=7139-100P
65 camme ring 9918200=7139-687M
65 camme ring 7139-713D
65 camme ring 7139-763E=7123-309Q
65 camme ring 9920106=7139-860P
65 camme ring=7139-844M 9927713=7139-844E
65 camme ring 9988673=7139-844M
65 camme ring 3+6 Cyl. 7139-940D
65 camme ring 7139-940M
65 camme ring 7139-940Q
65 camme ring 7139-940E
65 camme ring FIAT 4 Cyl. 780 7139-949Q
65 camme ring 7139-949M
65 camme ring 3+6 Cyl. 9922901=7139-974D=756D
65 camme ring 3+6 Cyl. 7167-287
65 camme ring 3+6 Cyl. 7167-287A
65 camme ring 9936129=7167-594C
65 camme ring 9961152=7174-67
65 camme ring 9961807=7174-67W
66 seeger 997916=5950-64A
68 dpa metering valve 7123-490
68 metering valve 7123-490B
68 metering valve 7123-781=7123-781F
68 metering valve 7123-781A
68 metering valve 7123-781B
68 metering valve 7123-781C
68 metering valve 7123-781D
68 metering valve 7123-835B=7123-835F
68 metering valve 7123-835C
68 metering valve 7123-930

Pics Descriptions Orig.Reference
68 metering valve 7123-930B
68 metering valve 7139-269
68 metering valve 7139-269A
68 metering valve 9918203=7139-559
68 metering valve 9918206=7139-559A
68 metering valve 9917946=7139-559D
68 metering valve 9917947=7139-559E
68 metering valve 7139-559B
68 metering valve 7139-559C
68 metering valve 7123-490C
68 metering valve 7123-490D
68 metering valve 7123-490E
68 metering valve 7123-490F
68 metering valve sofim 9986333=7167-57AJP
68 metering valve 9003-027C
68 metering valve dpc 9100-125C
68 metering valve dpc 9100-228
68 metering valve sofim 9986332=7167-57AJN
68 metering valve (threaded) dps 7174-980A
68 metering valve trax dps 9961153=7182-620A
68 metering valve dps 7182-621J
68 metering valve dps 7182-620C
68 metering valve dps 7182-620G
68 metering valve dps 7182-621A
68 metering valve dps 7182-621C
68 metering valve 7182-621G=9971559
68 metering valve 11563
68 metering valve sofim 9986331=7167-57AJM
69 washer locking 9922905=7167-331
70 screw 9917934=5334-277
71 dpa plate (pair) 3pcs 9988591=7135-73A
71 dpa plate pair 9917913=7135-76AC=7135-76
73 spring guide 9917958=7123-93

Pics Descriptions Orig.Reference
74 spring 9917957=7123-92A
75 stop shaft 9917949=7123-726
76 washer locking 82.0179 9917932=7123-600
77 accelerator shaft 7123-770D
77 accelerator shaft (short) 9917954=7123-770
77 accelerator shaft (long) 7123-770A
77 accelerator shaft dps 7123-828E
77 accelerator shaft dpc 7139-791A
78 alu sleeve dpa 4617425=7139-184
78 seal Ø 8 7174-929B
78 seal 7139-795
78/1 seal cap (short) 9986265=7139-60A
79 register screw 9917960=5334-267A
80 screw vent ass.(small) 9917964=7123-351B
80/1 screw vent ass. 9917908=7123-352B
80/2 screw vent ass. 5334/332
81 fibre washer 9,5x5x2 9917938=5339-970
82 nut cap 9917937=5330-344=7123-108
83 self locking nut dpa 9917953=5330-406=NU9-8Y1
84 lever stop dpa Ø 6,5 9917951=7123-725A
84 lever stop dpa Ø 5 9927706=7123-725B
84/1 accelerator lever 9917955=7123-724D
84/1 accelerator lever 7123-724
85 dust cap dpa 9917952=7123-728A
90 stud 5335-694A
90 stud 9923014=5335-694
93 cap 5334-280
94 copper washer NW5-18W4
95 drilled bolt Ø 13
96 copper washer Ø13x1,5 5339-966
96 copper washerØ13x2,00 NW5-34 W4
97 cover plate 7180-57A=9045-296
98 jointing dpa 9045-137

Pics Descriptions Orig.Reference
98 jointing sofim dpa 7139-740
99 seal transfer pump 9917899=7139-43
100 dust cap 7139-979
101 cover fiat 9917959=7123-888
101 cover 7123-888A
101 cover fiat 9929958=7123-888D
101 cover 7123-785A
101 cover sofim 9988814=7123-785N
102 dpa stud 9917931=7123-527
103 coupling 9926919=7167-89A
103/1 advance body dpa 7139-16
103/1 advance body dpa 7139-16A
104 H. HEAD & ROTOR PERKINS=VM 7123-340G
104 H. HEAD & ROTOR PERKINS 7123-340
104 H. HEAD & ROTOR PERKINS 7123-340K
104 H. HEAD & ROTOR DAVID BROWN 7123-340L
104 H. HEAD & ROTOR PERKINS 7123-340R
104 H. HEAD & ROTOR PERKINS=SAME 7123-340S
104 H. HEAD & ROTOR PERKINS=SAME 7123-340U=9003-203V
104 H. HEAD & ROTOR PERKINS=SAME 7123-340W
104 H. HEAD & ROTOR 7123-340M
104 H. HEAD & ROTOR 7123-345N
104 H. HEAD & ROTOR 7123-340Q
104 H. HEAD & ROTOR PERKINS 7123-345M
104 H. HEAD & ROTOR 7123-345S
104 H. HEAD & ROTOR PERKINS 7123-345T
104 H. HEAD & ROTOR SAME 6 Cyl. 7123-345W
104 H. HEAD & ROTOR JOHN DEERE 7123-345U
104 H. HEAD & ROTOR MASSEY FERGUSON Turbo 7123-345X
104 H. HEAD & ROTOR 7123-359J
104 H. HEAD & ROTOR PERKINS 7123-909T
104 H. HEAD & ROTOR 7123-909U
104 H. HEAD & ROTOR PERKINS 7123-909V

Pics Descriptions Orig.Reference
104 H. HEAD & ROTOR FIAT 4 Cyl. 7139-130R
104 H. HEAD & ROTOR FIAT 4 Cyl. 7139-130T
104 H. HEAD & ROTOR PERKINS 7139-235S
104 H. HEAD & ROTOR PERKINS 6 Cyl. 7139-360U
104 H. HEAD & ROTOR FORD 5000/6000 HOLE UP 7139-422W
104 H. HEAD & ROTOR FORD 3000/4500 7139-709W
104 H. HEAD & ROTOR FIAT 7139-764T
104 H. HEAD & ROTOR PERKINS 7139-764S
104 H. HEAD & ROTOR FIAT=OM 40,50NC 7167-334U
104 H. HEAD & ROTOR FIAT 300 2 Cyl. 7167-349S
104 H. HEAD & ROTOR PERKINS 7167-539K
104 H. HEAD & ROTOR ROTO DIESEL 9002-232L=9002-2
104 H. HEAD & ROTOR FIAT 4 Cyl.with solenoid 7167-804R
104 H. HEAD & ROTOR FIAT 3 Cyl.with solenoid 7167-807T
104 H. HEAD & ROTOR DPS FIAT 6 Cyl. 7183-182L
104 H. HEAD & ROTOR 7180-553J
104 H. HEAD & ROTOR 7180-795S EX 559S
104 H. HEAD & ROTOR 7180-574T
104 H. HEAD & ROTOR 7180-19R EX 668R
104 H. HEAD & ROTOR 7180-19U EX 668U
104 H. HEAD & ROTOR 7180-19W EX 668W
104 H. HEAD & ROTOR 7180-19S EX 668S
104 H. HEAD & ROTOR 7180-19G EX 668G
104 H. HEAD & ROTOR 7180-586F
104 H. HEAD & ROTOR 7180-650S
104 H. HEAD & ROTOR 7180-578M EX 7123-359M
104 H. HEAD & ROTOR 4 Cyl.with solenoid 7180-681R
104 H. HEAD & ROTOR FIAT 1000 with solenoid 6 Cyl.DPA
105 stop SPRING mm.8
105 accelerator RETURN spring mm.13
106 washer rotor plug 5339-808/5339-964
112 drive shaft mm.28 7180-136A EX 7139-644D
112 drive shaft mm.28,5 7180-136B EX 7139-644E

Pics Descriptions Orig.Reference
113 cont/cover assy 7180-873A EX 7135-78D
114 damper 7139-159A
114 damper perkins 7139-159B
115 washer rotor plug 5339-808/5339-964
116 rubber advance 5950-54C


English China Español Русско Portuguese العربية Nederlands Français Deutsch Ελληνικά Italiano 日本語
闽ICP备14013449号-2
E-mail:sales@vepump.com Fax:+86-594-3600560
CopyRight©2003 ChinahanJi Power Co.,Ltd All rights reserved

Chinahanji Power Co.,Ltd is a manufacturer specialist in diesel engine parts.Our major products are Ve Pump,diesel injection parts, diesel nozzle,diesel fuel injection system,and the interrelated products (such as Head Rotor,Feed Pump ,Cam Plate, Drive Shaft , Magnet Valve , etc.),Diesel Plunger(A ,AS,P,PS7100,P8500,MW type, etc.) ,Diesel Nozzle (Dn,DNOPDN,S,SN,PN and so on.),Delivery Valve,Cat Pencil Injectors and so on.
